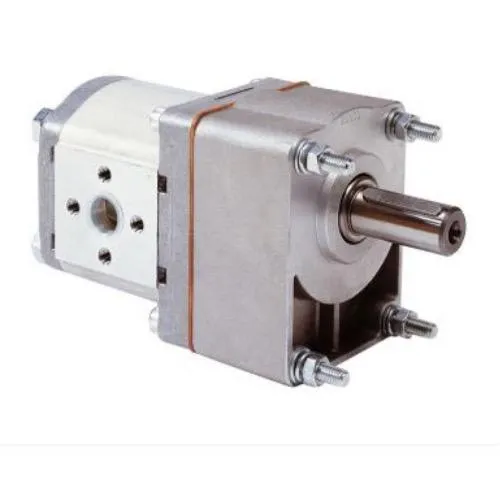

Although the engine manufacturer will often supply the hydraulic pump, VETUS can also offer a fixed volume hydraulic pump, which is belt driven off the main engine. This pump can be used in conjunction with our hydraulic power steering. This VETUS pump has a built in bearing block. Its dimensions are small and are comparable with those of the alternator. The pump has a power take-off of approximately 1 kW (1.5 hp).

• Dimensions (l x w x h): 220 x 90 x 112 mm
• Weight: 5 kg
• Shaft diameter: 22 mm
• Maximum shaft speed: 3,500 rpm
• Suction and pressure connections are included

  If an existing engine driven pump is to be used, the hydraulic flow rate must be minimum 7 l/min and maximum 40 l/min, with a maximum working pressure of 70 bar.
